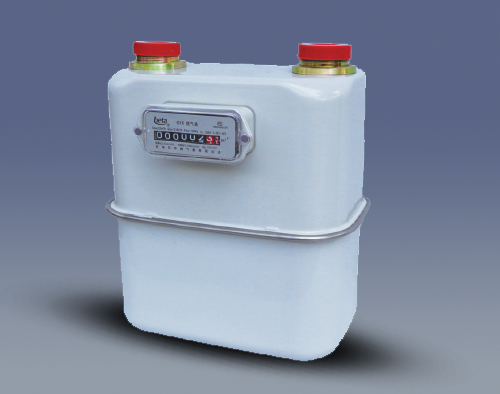

General Industrial Diaphragm Gas Meter

General Industrial Diaphragm Gas Meters have the features of compact size, beautiful appearance, high sensitivity, accurate measurement, good stability, strong reliability, high-pressure resistance, corrosion resistance, longer service life and easier maintenance.

Key Features

  • Meter complied with Indian standards
  • Body case made through die-casting of high-quality steel
  • Measuring unit injected with classed engineering plastic
  • Diaphragm made of superior NBR, fatigue resistance test over 2 million times
  • 360 degree rotating valve and valve seat made of advanced PF synthetic resin
  • Apply to Natural Gas, Biogas, LPG and all non-corrosive gas for industrial use


Installation Parameters

MODEL DIMENSION(mm)
  A W D H E
G6(S) 160 249 191 262 77.5
G10(S) 180 284 216.8 332 92
G16(S) 280 397 260 375 125
G16(S) 280 141.5 289 439 129.5

Technical Parameters

ITEM UNIT MODEL
    G6(S) G10(S) G16(S) G25(S)
Nominal Flow Rate m3/h 6 10 16 25
Max. Flow Rate m3/h 10 16 25 40
Min. Flow Rate m3/h 0.06 0.10 0.16 0.25
Total Pressure Loss Pa ≤200 ≤300 ≤300 ≤300
Working Pressure Range kPa 0.5~30
Cyclic Volume dm3 2 5 10 20
Permissible
Error
Qmin≤Q<0.1Qmax

0.1Qmax≤Q≤Qmax
%

%
±3

±1.5
Min. Recording Reading dm3 0.2
Max.Recording Reading m3 99999.999
Operation ambient temperature °C -20~+55
Storage Temperature °C -20~+55
Service life year 10(Natural Gas)
Connection Thread   G1¼" G2 G2" M80x3
